Kalbodnama

What is Kalbodnama?

KalbodNama is a new educational tool and simulator of human body anatomy that by providing different parts of the body virtually and educationally in the form of a smart table with a very easy and fully touched interface can be a very useful educational tool next to the body and instead of educational models.



Why Kalbodnama?

  • Reduce costs associated with the preparation of corpses and educational models
  • Eliminate the dangers while working with the corpse
  • Longer lifespan of a virtual autopsy table compared to a corpse
  • Better educational learning by providing three-dimensional anatomy of the body
  • Facilitate and accelerate the teaching and learning of anatomy and the learning of radiology and embryology
  • Creating equal educational opportunities
  • Ability to enlarge all organs to the desired size without losing the natural color and its details
  • Designing a human model in three dimensions for men and women
  • Moving towards the e-learning system and third-generation universities
  • Ability to train multiple body systems at the same time

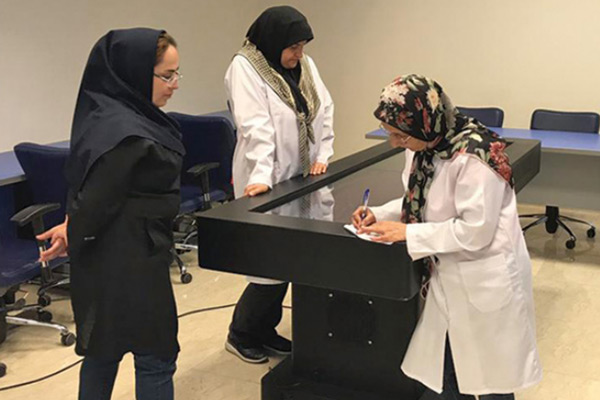

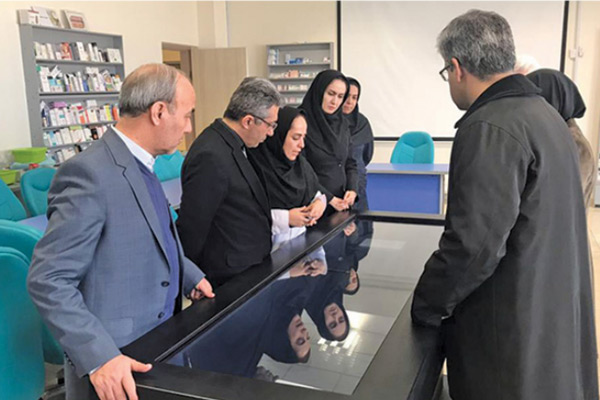

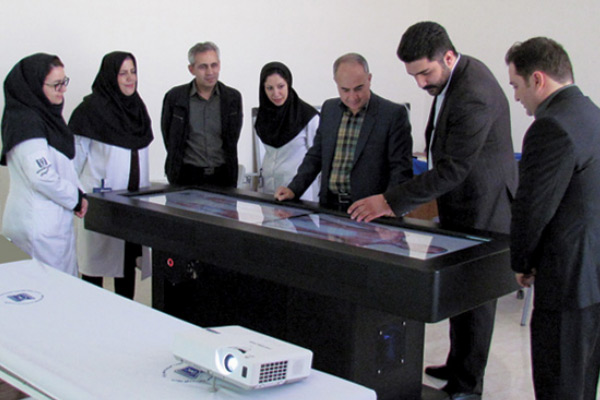

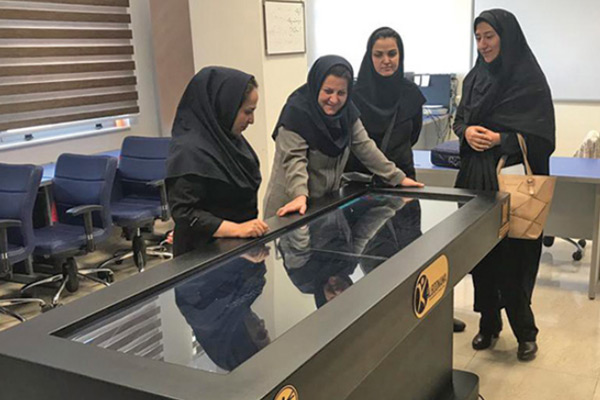

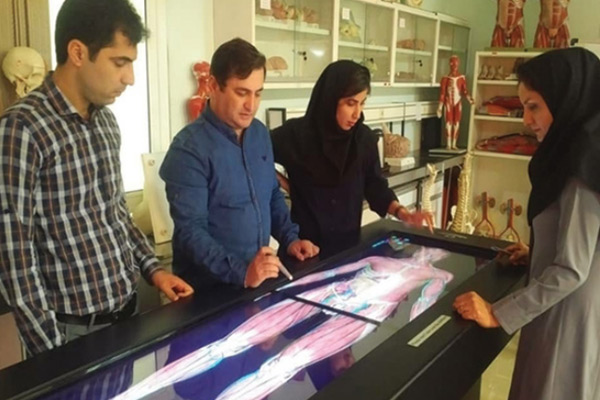

Photo Gallery:

General Features of KalbodNama: :



All organs including arteries, veins, nerves, and ... in the form of three-dimensional models and in the form of a system in accordance with the educational observation program

Ability to view anatomy reference books along with anatomy models for additional information

Showing the evolution of human embryos from 15 days to 60 days in the form of anatomical models prepared from real embryos

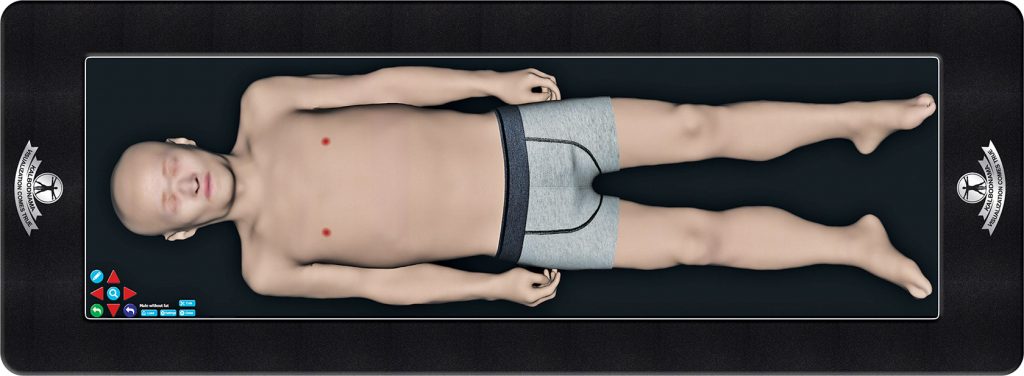

3D volumetric model made of a cadaver with the possibility of cutting from a point with the desired angle and moving from the surface to the depth of the body with the actual color and shape of the limbs

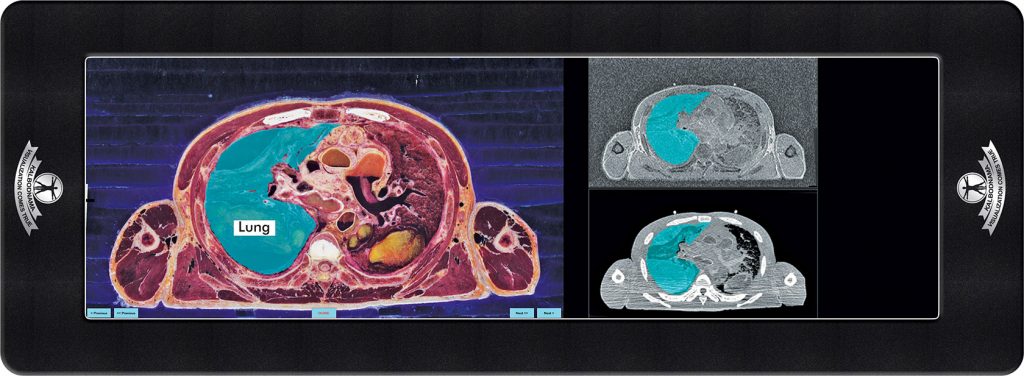

Cross-sectional anatomy of the body in the form of 1200 color images of cadaver transducer sections along with CT-scan and MRI images of each slide segmented (the range of each member is specified on the images)

3D imaging of CT-scan and MRI images

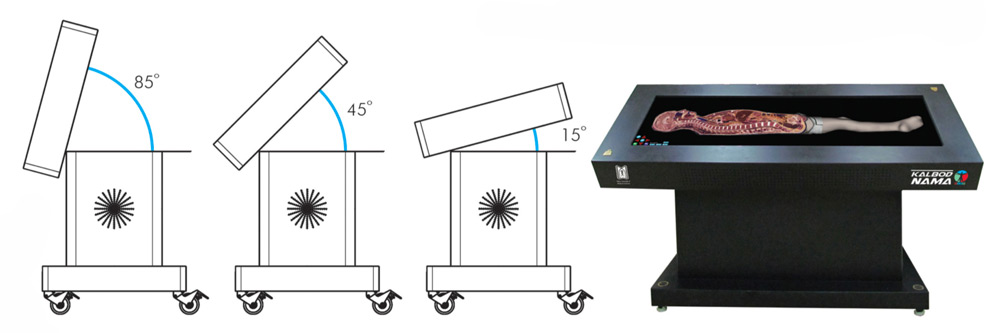

Technical Specifications

Dimensions

Length: 217 cm / Height: 104 cm / Width: 80 cm

Weight

112 kg

Screen Size

Two 40-inch or 78-inch displays (32: 9 ultra-wide)

Screen Size

182 cm x 56 cm

Screen Resolution

2160 × 3840 (4K full quality)

Power

220V AC, 60Hz, 10A (requires UPS)

Power Consumption

900 watts

Operational Temperature

-10 ° C to 40 ° C

Humidity

10 to 80%

Network

RJ45

Video Outputs

HDMI and VGA
